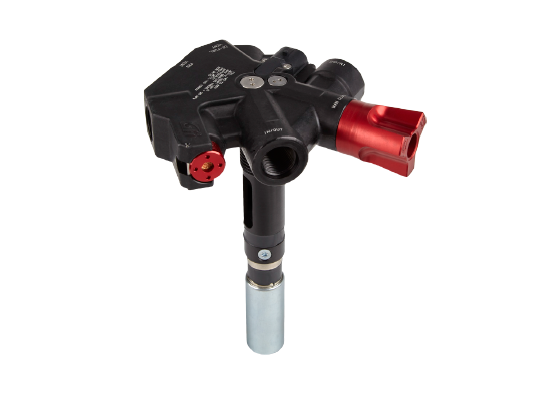

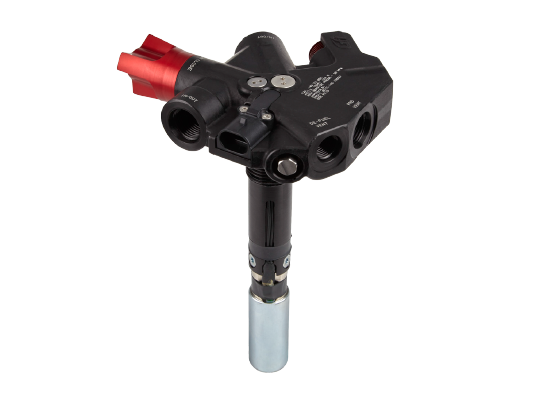

H-TV-600 Series
HEAVY DUTY GRADE 1-1/8” INTERNAL SOLENOID TANK
大流量1-1/8”內置電磁閥式瓶口閥
Key Features
GFI has applied its patented GFI 2” in-tank solenoid technology into a new 1-1/8” Heavy Duty H-TV-600 Series. All this performance along with the safety and reliability of having the solenoid inside the tank to protect it from impact and environmental conditions to ensure a longer life.
? The solenoid coil is located inside the cylinder, providing impact and environmental protection
? High Flow Pilot temperature activated pressure relief device (T-PRD)
? Cadmium free eutectic or glass bulb available models
? Parallel P-PRD (burst disk) option available
? Dedicated defueling port option available
? 12V and 24V solenoid coil options available (with saturation or peak and hold control)
? Constructed from light weight forged aluminium
? Specifically designed for 350 Bar Hydrogen
? Patented crashworthy design
? Suitable for all cylinder types
? Pressure sensor port available
主要特性
GFI根據自己的GFI 2”氣瓶內嵌電磁閥專利技術，新設計了一款1-1/8”的大流量 H-TV600系列氫氣瓶口閥，內嵌電磁閥技術可以保護瓶閥不受外界干擾，從而使用壽命更長。
? 電磁閥線圈為止氣瓶內部，有效保護來自外力和環境的影響;
? 大流量溫度型壓力釋放閥;
? 非鎘易熔金屬或者溫控玻璃管;
? 支持壓力型壓力釋放閥;
? 可選裝放氣孔;
? 有12V和24V電磁線圈可以選擇，支持飽和電流或者拉升保持驅動;
? 輕量化鋁制機體;
? 專門為350bar氫氣設計;
? 專利耐碰撞設計;
? 支持不同類型的氫氣瓶;
? 可選裝壓力傳感器。

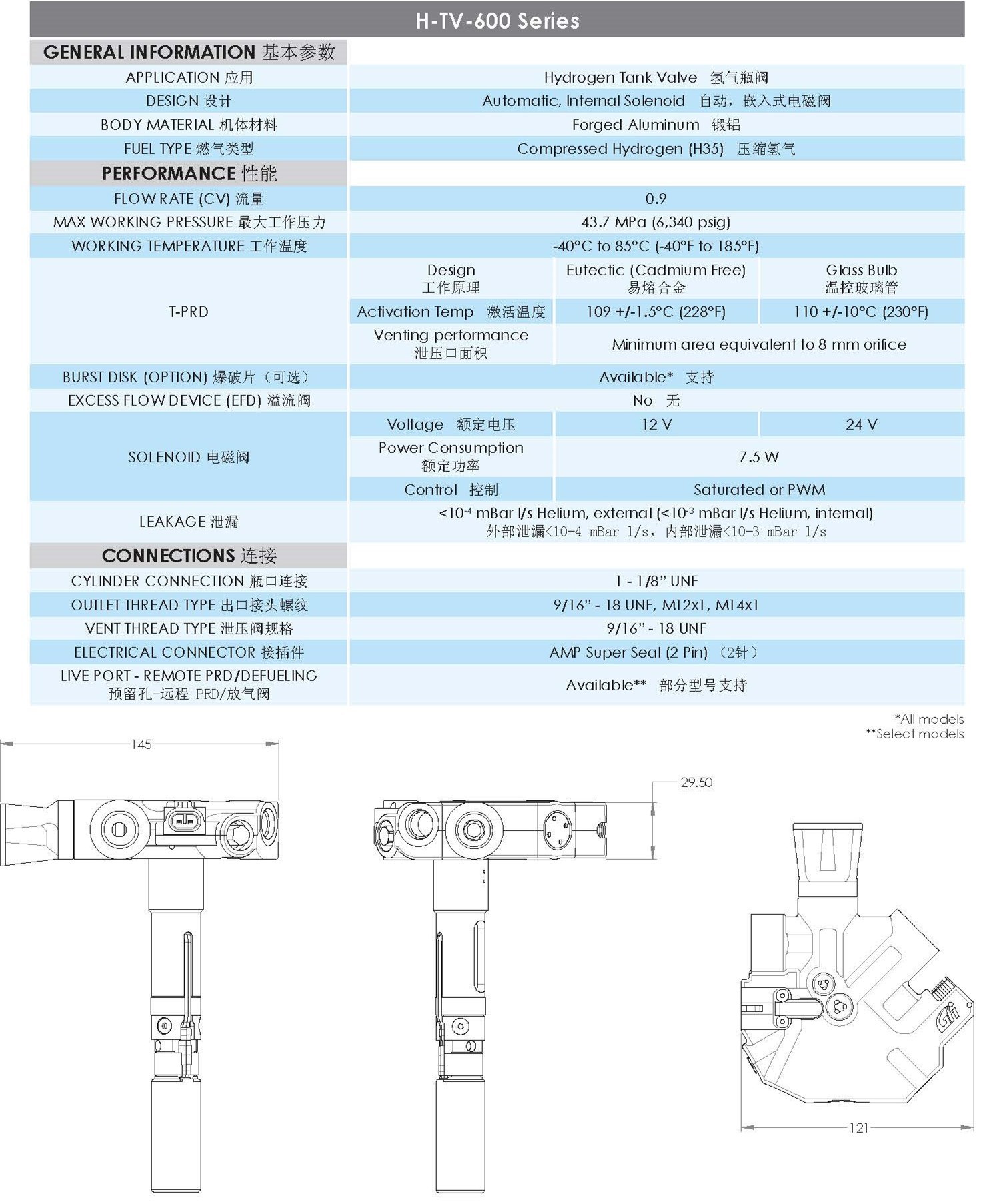

SPECIFICATIONS 技術參數
關鍵詞： 35MPa GFI氫氣瓶閥TV-600
